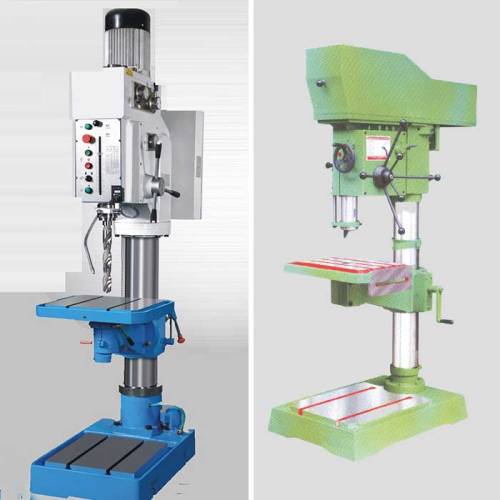

Pillar Drilling Machine Suppliers

At Atlas Machines (India), accuracy is engineered-not assumed. Our Pillar Drilling Machine in Navi Mumbai is designed to eliminate any inconsistency in diameter, offering reproducible torque with excellent rigidity under load in every drill line. It is guaranteed to achieve vertical alignment through light, medium, and heavy drilling operations. Every machine was designed to accommodate a load without collapsing, ensuring a clean drill-in spot where depth, precision, and repeatability truly matter.

Power Never Reluctantly Yielding Under Load — Pillar Drilling Machine Suppliers in India

Built for demanding environments, our machines are trusted countrywide by general engineering and fabrication units. As one of the dependable Pillar Drilling Machine Suppliers in India, we equip machines that are manufactured to perfection for continuous and deep metal cutting.

Heavy-duty specifications of products include:

• Drilling Capacity (Steel): 25 – 38 mm
• Spindle Taper: MT-3 / MT-4
• Spindle Travel: Up to 152 mm
• Speed Range: 82 – 2425 RPM (Direct + Geared)
• Motor Power: 1 – 2 HP
• Column Diameter: 90 – 130 mm

Built for the Global Stage — Heavy Duty Pillar Drilling Machine Exporters in India

Our machines meet international industrial standards, making them acceptable in all markets. We are one of the reliable Heavy Duty Pillar Drilling Machine Exporters in India, offering heavy-duty pillar drilling solutions that operate dependably under heavy workloads for extended duty cycles.

Export grade machine specifications include:

• Drilling Capacity: up to 50 mm
• Spindle Taper Options: MT-2 / MT-3 / MT-4
• Speed Range: 48 – 2900 RPM
• Heavy-duty cast iron base and column
• Optional coolant system and electrical panel
• Designed for continuous drilling, tapping, and counterboring

Smart Automation for Consistent Output — Automatic Pillar Drilling Machine Manufacturers in Navi Mumbai

Once taken over by automation, consistent output becomes smooth and simple. As one of the leading Automatic Pillar Drilling Machine Suppliers in Navi Mumbai, our machines are purposely made to accommodate continuous repetitive drilling cycles, batch production and uniform depth control, with reduced operator intervention.

Details of Automatic & All-Geared Machine:

• Drilling Capacity (Steel): 32 – 50 mm
• Spindle Speeds: 6 – 8 speeds (48 – 1500 RPM)
• Spindle Feeds: 3 feeds (0.1 – 0.4 mm/rev)
• Vertical Spindle Travel: Up to 200 mm
• Motor Power: 1.5 – 5 HP
• Approx. Weight: 700 – 1350 kg

Precision Across Compact Operations through Bench & Vertical Pillar Drilling Solutions

Space-conscious workshops and tool rooms can have small yet precise pillar drills without compromise. As trusted Industrial Drilling Machine Suppliers in India, our compact drilling solutions are made for consistent results. They are designed for accuracy and easy handling, making them applicable in lighter critical drilling.

Details of Bench & Vertical Pillar Drilling Machine:

• Drilling Capacity (M.S.): 13 – 19 mm
• Tapping Capacity: Up to 14 mm
• Spindle Travel: 80 – 130 mm
• Speed Range: 500 – 3360 RPM
• Motor Power: 0.5 – 1 HP
• Net Weight: 44 – 205 kg

Choose Us For Industrial Confidence Through Precision Pillar Drilling

From maintenance workshops to full-scale manufacturing units, a pillar drilling machine can provide stability, accuracy, and longevity. Made by the most trusted Metal Drilling Machine Suppliers in Navi Mumbai, every machine engineered by us to drill straight, be very rigid, and perform reliably across industries and borders.
