Radial Drilling Machine Suppliers

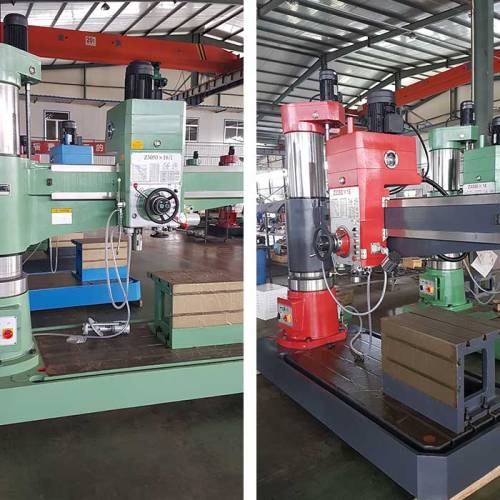

Freedom of movement, strength and absolute control are requirements when handling massive components. Atlas Machines (India) builds a Radial Drilling Machine in Navi Mumbai that handles oversized workpieces effortlessly, accurately and more stably. The machine's rigid column, wide radial reach and smooth spindle operation with no repetitive positioning, as well as hole coordination, make it ideal for heavy engineering environments.

Command Heavy Work with Smooth Precision and Stability By Radial Drilling Machine Suppliers in India

A level of complexity arises about the workpieces; thus, flexibility becomes a vital element. As trusted Radial Drilling Machine Suppliers in India, all-geared radial drills are provided by us with available models: AMI-32 | AMI-40 | AMI-50A | AMI-50B | AMI-50C | AMI-65 | AMI-75, for smooth torque transmission, deeper drilling, and higher-feed control to stable cutting even under the harshest conditions of fabrication and foundry.

Their Key Technical Capabilities:

• Drilling Capacity (Steel / CI): 32/40 mm to 75/85 mm
• Spindle Taper: MT-3 to MT-6
• Spindle Speeds: 6 to 12 steps (18 – 1000 RPM)
• Spindle Feeds: Up to 6 feed rates (0.125 – 1.25 mm/rev)
• Drill Motor Power: 1.5 kW to 5.5 kW
• Maximum Drilling Radius: 750 mm to 1900 mm
• Head Traverse: 400 mm to 1200 mm
• Weight Inside Distance of Evacuation: 1,750 mm and Above
• Heavy-duty column sleeves: up to 405 mm diameter

Precision That Transcends Borders By Geared Radial Drilling Machine Exporters in India

Built to withstand time, load, and global industrial demand. Our machines, designed for the international market, instil endurance and perfection at global levels. We are one of the reputed Geared Radial Drilling Machine Exporters in India, known for supplying machines across borders, industries, and time cycles.

The Benefits of our exported goods:

• Heavy-duty base and column for handling extreme loads.
• Hardened guideways are effective, wear-resistant parts.
• Stable drilling during continuous operation.
• Minimal vibration at higher capacities.
• Life expectancy is high, and maintenance is low.

Suitable for Compact Radial Solutions in Controlled Operations

Not every kind of job is suitable for extreme reach, and hence, what is needed there is the rhythm. As one of the eminent Hydraulic Radial Drilling Machine Suppliers in Navi Mumbai, our smaller radial models give precision drilling, paired with controlled movement, making them ideal models for maintenance-type shops and medium-duty applications.

Features of Our Commonly Used Radial Drill-25MM Model (AMI-25)

• Drilling Capacity (M.S.): 25 mm
• Spindle Travel: 225 mm
• Spindle Speeds: 8 steps (120-2800 RPM)
• Spindle Taper: MT-3
• Column Diameter: 127 mm
• Drill Motor: 1 HP
• Net weight: 485 kg

For Mid-Range Fabrication, Mastered Through Balanced Engineering

These machines strike a balance between reach and are at minimal ground most of the time, and also save space. As one of the leading Universal Radial Drilling Machine Suppliers in India, we engineer and supply solutions that support mid-range fabrication with dependable power, stable performance, and space-efficient design.

Specification for Our Other Popular Radial Drill - 32 & 38 MM Models (AMI-32 | AMI-38):

• Drilling Capacity (Steel): 32 mm | 38 mm
• Spindle Travel: 152 mm
• Spindle Speeds: 8 steps (50 - 1735 RPM)
• Spindle Taper: MT-3/MT-4
• Column Diameter: 158 mm
• Drill Motor: 2 HP
• Gross Weight: 800 kg

Choose Us for Machines That Drill with Authority and Accuracy

We are confident that every radial drill we manufacture reflects accurate engineering for safety measures for operators and long-term value. Termed as one of the best Precision Radial Drilling Machine Suppliers in Navi Mumbai, our machines aren't built just to function in the way of drilling-they are built to deliver good performance, year after year, wherever heavy work demands precision.
